Home > YAMAHA -750cc- > Carburetor Tornade-kit for SRX600(1JK)

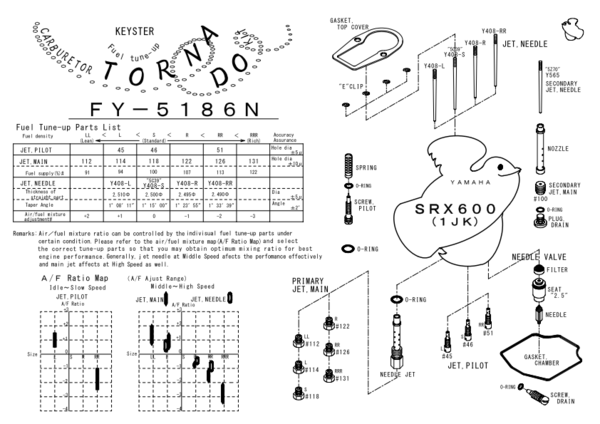

Kit includes:
- float chamber gasket
- float needle and valve seat
- primary main jet (6 sizes:#112 #114 #118 #122 #126 #131)
- pilot jet (3 sizes:#45 #46 #51)
- primary jet needle (4 sizes:S/L/R/RR)
- secondary jet needle
- secondary main jet #100
- "e" clip
- primary main nozzle
- secondary main nozzle
- air screw
- spring
- washer
- o-ring
- top cover gasket
- drain screw

One Kit fixes one carb, price is for one kit


"S" ---> Initial of "Standard" size
"L" ---> Initial of "Lean" size
"R" ---> Initial of "Rich" size

Carburetor Tornade-kit for SRX600(1JK)
Carburetor Tornade-kit for SRX600(1JK)
Qty.
currency calculator
KEYSTER No. FY-5186N

TK carb.
Retail price:-JPY
Our price: 4000JPY
