Home > YAMAHA 1001cc- > Carburetor Tornade-kit for XJR1300(RP03J)

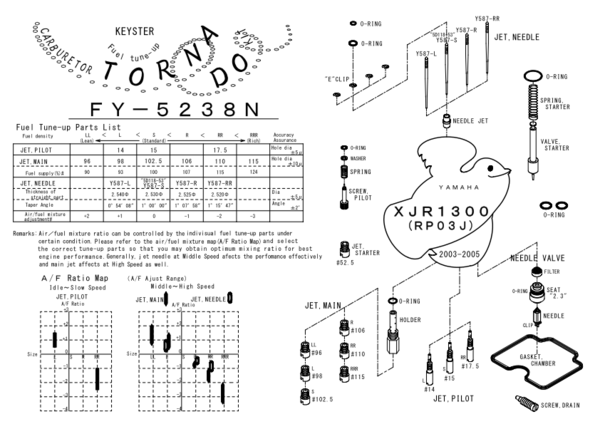

Kit includes:
- float chamber gasket
- float needle and valve seat
- main jet (6 sizes:#96 #98 #102.5 #106 #110 #115)
- pilot jet (3 sizes:#14 #15 #17.5)
- starter jet #52.5
- jet needle (4 sizes:S/L/R/RR)
- "e" clip
- needle jet
- pilot screw
- spring
- washer
- o-ring
- jet holder
- drain screw
- starter plunger

One Kit fixes one carb, price is for one kit


"S" ---> Initial of "Standard" size
"L" ---> Initial of "Lean" size
"R" ---> Initial of "Rich" size

Carburetor Tornade-kit for XJR1300(RP03J)
Carburetor Tornade-kit for XJR1300(RP03J)
Qty.
currency calculator
KEYSTER No. FY-5238N

Year:2003-2005
Retail price:-JPY
Our price: 4000JPY
